VT(Y)series multi-axis vertical lathe|multi tasking machine

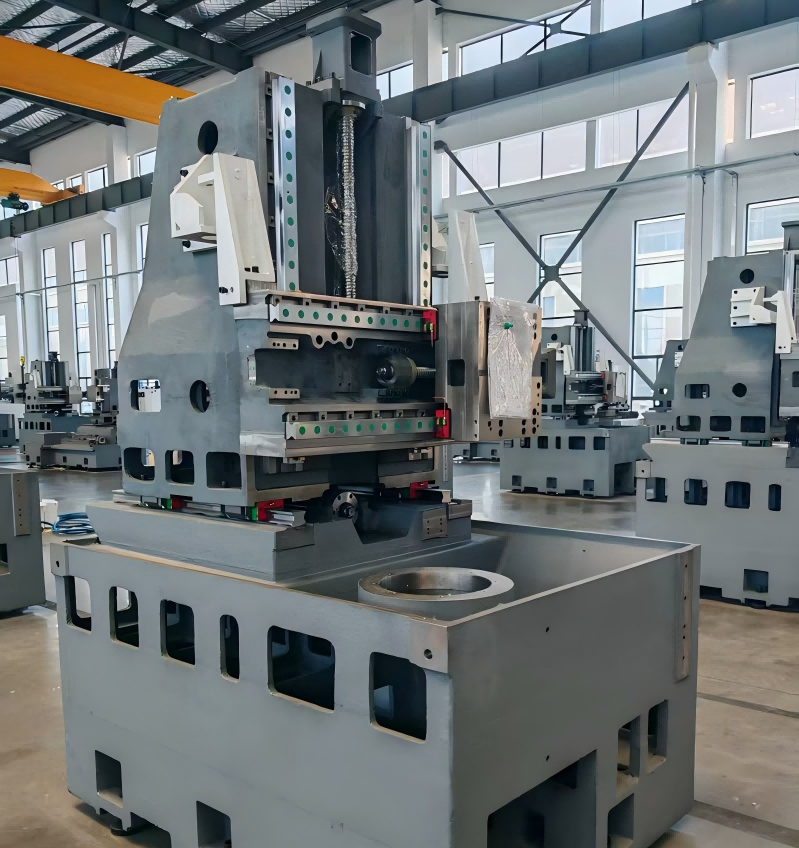

VT series cnc vtl machine all feature build-in motor spindle,spindle nose from A2-6 to A2-15.This is a vertical turning milling machine with powerful capabilities in turning, milling, drilling, and other composite machining. One clamping can complete the composite processing of five sides of the product. Convenient clamping, strong process adaptability, and high processing efficiency, it is an ideal processing equipment for complex short shaft and disc parts in the automotive, motorcycle, and other industries.In many processing scenarios, it can replace cnc vmc,hmc and vtl machine, thereby saving equipment investment costs.
Specifications:
TRAVELS | ||
X-axis travel | mm | 265 |
Y-axis travel | mm | ± 150 |
Z-axis travel | mm | 550 |
ACCURACY | ||
Positioning | mm | 0.008 |
Repeatability | mm | 0.004 |
C axis positioning accuracy | ” | ± 15 |
C axis Repeatability accuracy | ” | ±7.5 |
SPINDLE | ||
| Spindle nose | A2-8 | |
Spindle Through Hole/Bore Diameter | mm | Ø80/Ø0 |
Spindle Max spinning speed | rpm | 2000 |
Spindle Motor Power (cont./30min) | kw | 30/37 |
Spindle Rated /Maximum Torque | Nm | 400/800 |
Processing capacity | ||
Max. swing Diameter | mm | Ø550 |
Max. cutting Diameter | mm | Ø450 |
Max. Length of workpiece | mm | 500 |
X Axis Fast-Moving | m/min | 20 |
Y Axis Fast-Moving | m/min | 15 |
Z Axis Fast-Moving | m/min | 20 |
Turret | ||
No. of tools | nos. | 12 |
Type of turret | BMT65 | |
Toolshank size | mm | □25/Ø50 |
Max. Speed of livetooling | rpm | 4000 |
Tool change time | s | 0.5 |
Power | kw | 6/9 |
Others | ||
Coolant Tank capacity | L | 250 |
Total electrical capacity | KVA | 55 |
Weight | kg | 6800 |
Dimension L*W*H | mm | 2340*2530*3120 |
We also have VT45Y，VT50Y,VT65Y，VT85Y for VT(Y)series .Meet the processing needs of products of different sizes.
