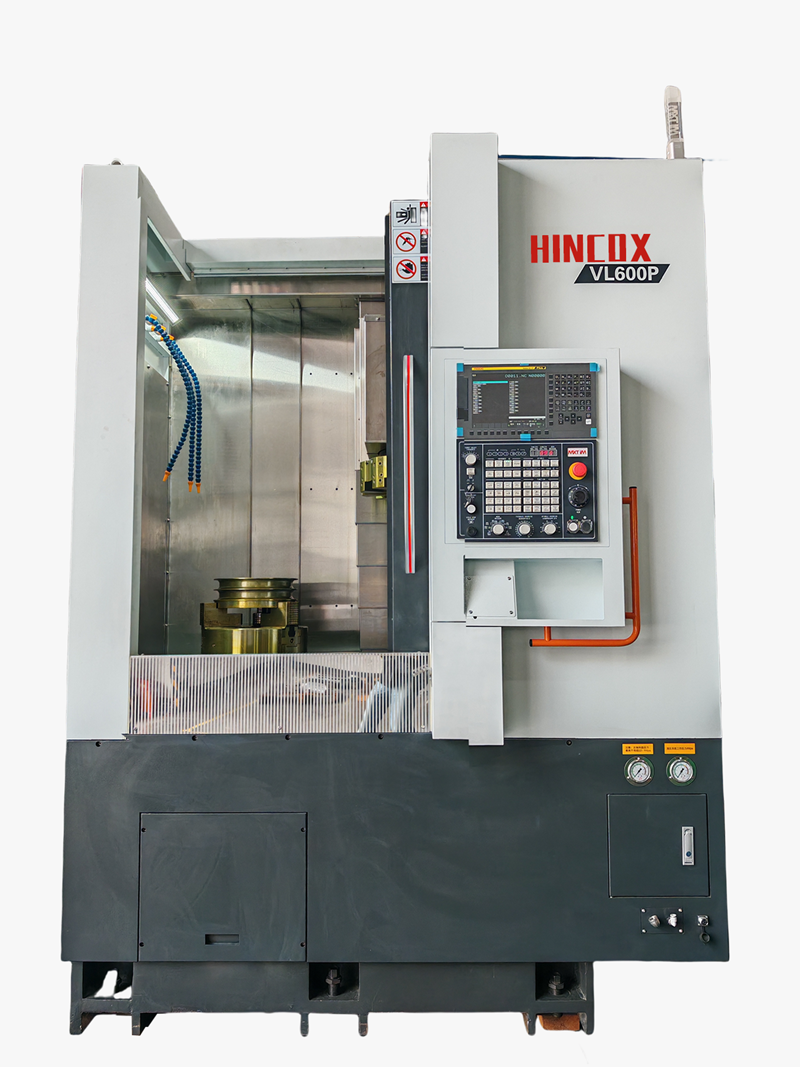

VL600 vtl machine|advanced structure
The vtl machine VL600 features a cutting-edge design that sets it apart from the traditional cross-type slide rail approach.The X-axis features a moving column design with three guide rails, offering a robust bearing surface that enhances the machine tool's stiffness and ability to dampen vibrations.The vertical turret lathe machine's rectangular column sits firmly on its base, and the carriage is securely attached to the column with three linear rails. One of these rails supports the carriage from underneath, boosting the machine's overall strength. This sturdy setup ensures the machine can handle heavy-duty cutting tasks while maintaining top-notch precision for years to come.
Specifications:
Item | Unit | VL600 | |
Capacity | Chuck size | inch | 12 |
Max. swing dia. over bed | mm | Ø750 | |
Max. height of workpiece | mm | 450 | |
Max. dia. of workpiece | mm | 600 | |
Spindle | Spindle bore | mm | Ø66 |
Spindle nose | A2-8 | ||
Max. spindle speed | rpm | 1900 | |
Main motor power | kW | 15/18.5 | |
Axis | X axis travel | mm | -30,+350 |
Z axis travel | mm | -20,+500 | |
X/Z rapid traverse | m/min | 16/20 | |
Turret | Center height | mm | 125 |
No. of tool stations | 12 | ||
Tool shank size | mm | 32x32 | |
Others | Power capacity | kVA | 35 |
Dimension (L×W×H) | mm | 2000×2600×2700 | |
Weight | kg | 7300 |
A2-11 cnc chuck is optional feuture.
