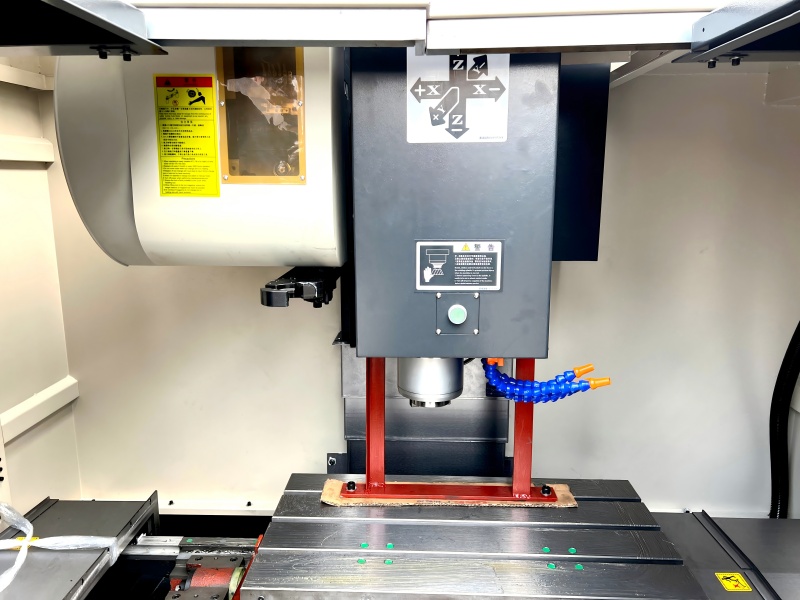

VMC650L small vmc machine|BT40
VMC650L is a small vmc machine,If your products mainly consist of small-sized parts, it will be a very good choice. High precision, high rigidity and low cost are its main features
ITEM | VMC650L | |
Travel | travel X/Y/Z | 650/400/500 |
Spindle nose to table | 35-535mm | |
Spindle center to column | 500mm | |
Workstation | Table size | 800*420 |
Max. load | 300kg | |
T-slot | 3-16*110mm | |
Spindle | Spindle type | BT40 |
Spindle speed | 8000/*12000 | |
Main motor | 7.5/11 | |
Moving Speed | X/Y/Z axis rapid traverse | 24/24/24M/min |
ATC | Number of tools | 24 |
Tool change form | Disc type | |
Max. tool length | 250mm | |
Max.weight of tool | 8kg | |
Tool change time | 1.8s（T-T） | |
Others | Machine weight | 3700kg |
Dimension | 2120*2425*2400mm | |
