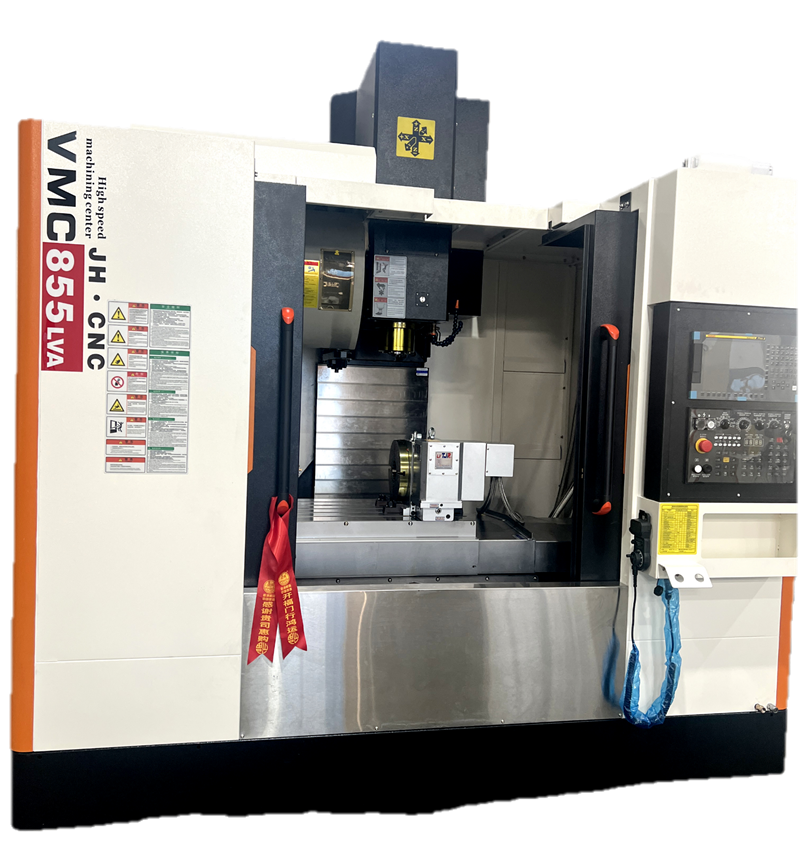

VMC855 High performance vertical machining center-top 10 vmc manufacturer
The cnc vmc 855 with its' wide base and column design, features excellent rigidity and continuous stability. For many years, it has been deeply favored by users and is currently the best-selling model.In addition, all the accessories adopted by this machine are produced by globally renowned manufacturers and are universal worldwide.

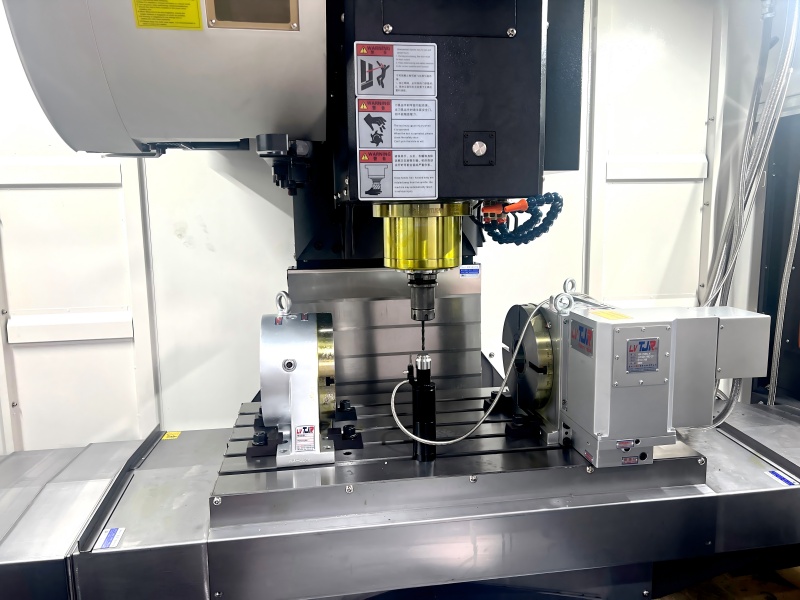

It also can be upgraded to 4 axis cnc vertical machining center,cnc milling machine.
ITEM | VMC855 | |
Travel | travel X/Y/Z | 800/550/550 |
Spindle nose to table | 120-670mm | |
Spindle center to column | 590mm | |
Workstation | Table size | 1000*550 |
Max. load | 500kg | |
T-slot | 5-18*90mm | |
Spindle | Spindle type | BT40 |
Spindle speed | 8000/*12000 | |
Main motor | 7.5/11 | |
Moving Speed | X/Y/Z axis rapid traverse | 36/36/24 |
ATC | Number of tools | 24 |
Tool change form | Disc type | |
Max. tool length | 250mm | |
Max.weight of tool | 8kg | |
Tool change time | 1.8s（T-T） | |
Others | Machine weight | 5300kg |
Dimension | 2420*2550*2600mm | |
optional features:Fanuc ,Siemens,SYNTEC,GSK controller.
