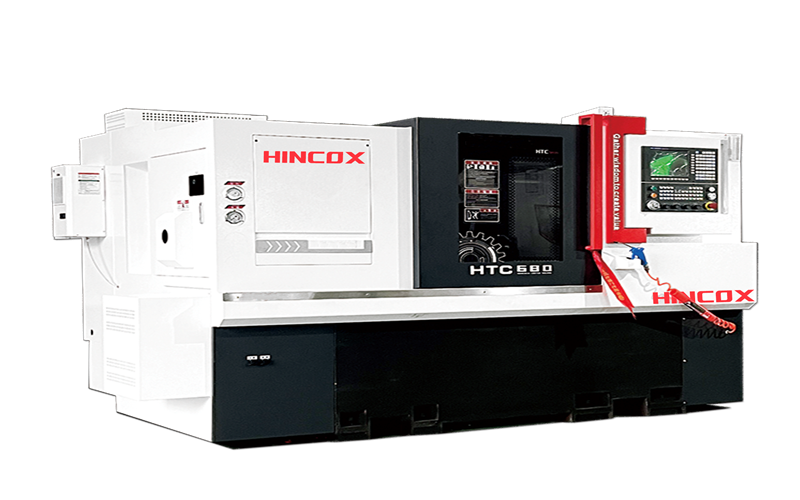

HTC680T cnc turning machine|slant bed&heavy duty
cnc turning machine HTC680T is designed based on wide span lathe bed, one-piece casting and large-sized linear motion guideway.It comes standard with a large-sized high-precision grade ball screw, adopts a prestretching method, has high positioning accuracy, and good precision stability.The spindle adopts a large torque AC servo spindle motor, which can perform strong cutting, start and stop quickly, improve machining accuracy and smoothness, and shorten machining time.
Characteristics::X/Z axis RG45 roller linear guideway ,Great rigidity, wide-body turret
* 10" Chuck size
* 125-12T wide-body turret
* Hydraulic tailstock(Hydrulic driven tailstock sleeve)
* 18.5kW Main servo motor
Specifictions:
Item | Unit | HTC680T | |
Capacity | Chuck size | inch | 10 |
Max. swing dia. over bed | mm | Ø680 | |
Max. length of workpiece | mm | 690 | |
Max. dia. of workpiece(disc parts) | mm | Ø580 | |
Spindle | Spindle bore | mm | Ø86 |
Spindle nose | A2-8 | ||
Max. spindle speed | rpm | 3200 | |
Main motor power | kW | 18.5 | |
Axis | X axis travel | mm | 310 |
Z axis travel | mm | 730 | |
X/Z rapid traverse | m/min | 24/24 | |
Turret | Center height | mm | 125 |
No. of tool stations | 12 | ||
Tool shank size | mm | 32x32 | |
Tailstock | Type of tailstock | Hydraulic/Sevro | |
Taper of tailstock quill | MT5 | ||
Travel of tailstock quill | mm | 100 | |
Max. Travel of tailstock | mm | 500 | |
Others | Power capacity | kVA | 28.5 |
Dimension (L×W×H) | mm | 2930×1750×2150 | |
Weight | kg | 5500 |
Optional features:
*control system*tailstock(sevro programmable)
* chip conveyor(Rear way/side way)
