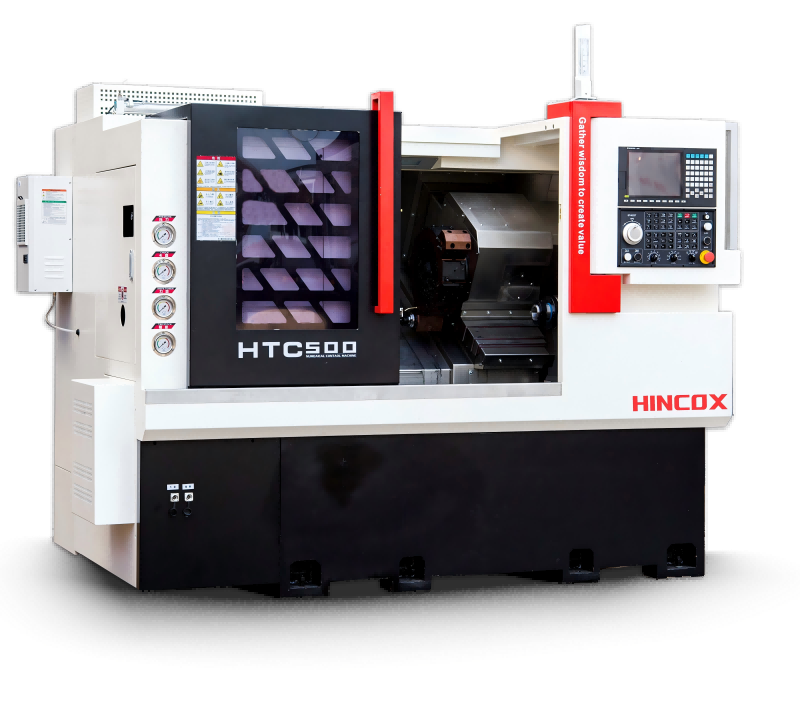

HTC500T/M High precision cnc turning center|highly recommended
cnc lathe machine HTC500's body is a 30 degree inclined structure with an inclined X-axis drag plate, which greatly reduces the reverse clearance of the screw and better controls the diameter accuracy of the workpiece. At the same time,chips and cooling liquid are easier to discharge, reducing the heat accumulation of the bed and spindle box, reducing thermal deformation, and having excellent thermal stability.

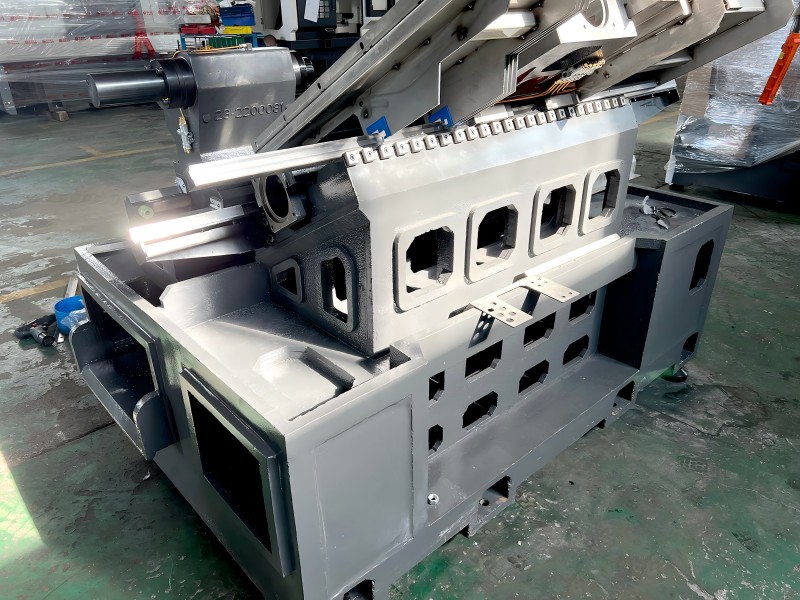

Rigid headstock,spindle and lathe tailstock , single-piece casting
HTC500T(A2-6) Belt spindle&100-12T-330 sevro turret
*HTC500M(A2-6) Direct Drive Spindle&BMT55-12T Power turret(without Y axis)
Specifictions:
Item | Unit | HTC500 | |
Capacity | Chuck size | inch | 8 |
Max. swing dia. over bed | mm | Ø560 | |
Max. length of workpiece | mm | 370, 450 | |
Max. dia. of workpiece(disc parts) | mm | Ø280, Ø400 | |
Spindle | Spindle bore | mm | Ø66 |
Spindle nose | A2-6, | ||
Max. spindle speed | rpm | 4000 | |
Main motor power | kW | 15, 22 | |
Axis | X axis travel | mm | 185, 230 |
Z axis travel | mm | 490 | |
X/Z rapid traverse | m/min | 24/24 | |
Turret | Center height | mm | 100,BMT55-12 |
No. of tool stations | 8, 12(BMT55) | ||
Tool shank size | mm | 25x25 | |
Tailstock | Type of tailstock | Hydraulic/Sevro | |
Taper of tailstock quill | MT4 | ||
Travel of tailstock quill | mm | 100 | |
Max. Travel of tailstock | mm | 400 | |
Others | Power capacity | kVA | 22 |
Dimension (L×W×H) | mm | 2510×1670×1850 | |
Weight | kg | 3750 |
Optional features:
*control system*tailstock*sevro programmable tailstock*chip conveyor(Rear way /side way)
