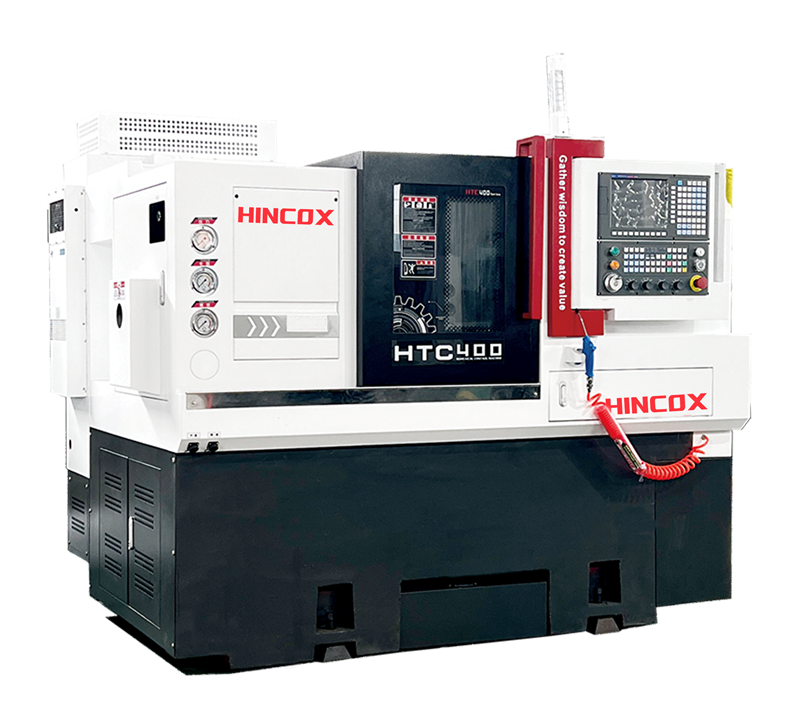

HTC400T/M cnc turret lathe price|compact design
cnc turret lathe HTC400 draws inspiration from Janpanese design and its unique structure design(wide span lathe bed&benched linear guideway), which gives it excellent rigidity and installation accuracy. The compact design is very suitable for processing small and medium-sized parts.Compared to Japanese and Korean models, the price will be much lower.
It is worth mentioning that this machine has a small footprint and is very suitable for users with limited workshop space.
technical specification of lathe machine：
Item | Unit | HTC400 | |
Capacity | Chuck size | inch | 6, *8 |
Max. swing dia. over bed | mm | Ø500 | |
Max. length of workpiece | mm | 420, *360 | |
Max. dia. of workpiece(disc parts) | mm | Ø300,* Ø280 | |
Spindle | Spindle bore | mm | Ø56, *Ø66 |
Spindle nose | A2-5, *A2-6, | ||
Max. spindle speed | rpm | 5000,*4000 | |
Main motor power | kW | 7.5, *12.5 | |
Axis | X axis travel | mm | 195, *175 |
Z axis travel | mm | 460 | |
X/Z rapid traverse | m/min | 24/24 | |
Turret | Center height | mm | 80,*BMT45-12 |
No. of tool stations | 8, *12(BMT45) | ||
Tool shank size | mm | 25x25, *20x20 | |
Tailstock | Type of tailstock | Hydraulic programmable | |
Taper of tailstock quill | MT4 | ||
Travel of tailstock quill | mm | 100 | |
Max. Travel of tailstock | mm | 350 | |
Others | Power capacity | kVA | 15 |
Dimension (L×W×H) | mm | 2150×1475×1660 | |
Weight | kg | 2950 |
Optional features:
*different chucks*control system*tailstock* chip conveyor(Rear way)*power turret
