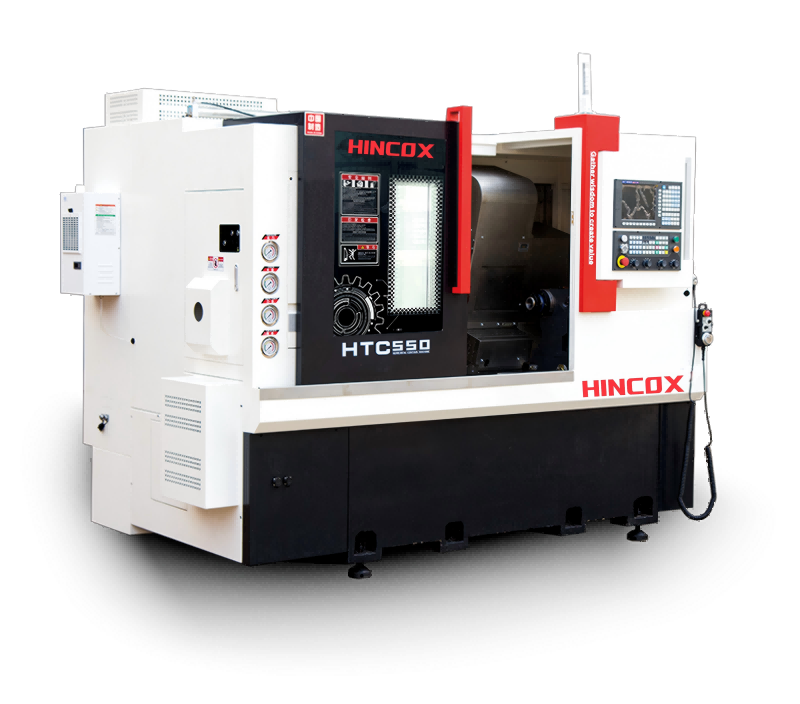

HTC550ZTYM Live tooling lathe|y axis lathe manufacturer
Live tooling lathe HTC550ZTYM adopts an advanced 30° inclined structure,and wide span base and bed.The Y-axis adopts hard guideway,so the rigidity is better than that of linear guideway Y axis, suitable for heavy duty cutting.X/Z axis use THK ball screw and THK linear guideway.
It can be used to machine steel parts(HRC<=50).This is also one of the best-selling cnc turning milling machine currently available.
Specifictions:
Item | Unit | HTC550ZTYM | |
Capacity | Max. length of workpiece | mm | 450 |
Max. swing dia. over bed | mm | Ф500 | |
Max. dia. of workpiece(disc parts) | mm | Ф350 | |
Spindle | Hydraulic chuck | Inch | 8 |
Dia. of spindle bore | mm | Φ66 | |
Spindle nose | A2-6 | ||
Max. spindle speed | rpm | 4500 | |
Main motor | kW | 22 | |
Structure | Slant bed degree | degree | 30° |
Guideway type | mm | LM | |
Axis | X axis travel | mm | 260 |
Z axis travel | mm | 550 | |
Y axis travel | mm | 100 (±50) | |
X/Y/Z axis rapid traverse | m/min | 24/10/24 | |
Turret | Type of turret | BMT55-12
| |
No. of tool | 12 | ||
OD toolshank size | mm | 25×25 | |
Boring toolshank size | mm | Ф32 | |
Max. speed of live tooling | rpm | 5000max/15Nm-3.1kW | |
Tailstock | Type of tailstock | Hydraulic | |
Taper of tailstock quill | MT5 | ||
Travel of tailstock quill | mm | Ф78/120 | |
Travel of tailstock | mm | 400 | |
Accuracy | X axis Repeatability Positioning Accuracy | mm | ±0.003mm |
Z axis Repeatability Positioning Accuracy | mm | ±0.003mm | |
C axis Repeatability Positioning Accuracy | Second of arc | 5 | |
Others | Weight (about) | kg | 4500 |
Overall dimension (L×W×H) | mm | 2850×1800×2100 |
Optional features:
*control system*Hydraulic driven linear guideway tailstock* chip conveyor(side way/rear way)
