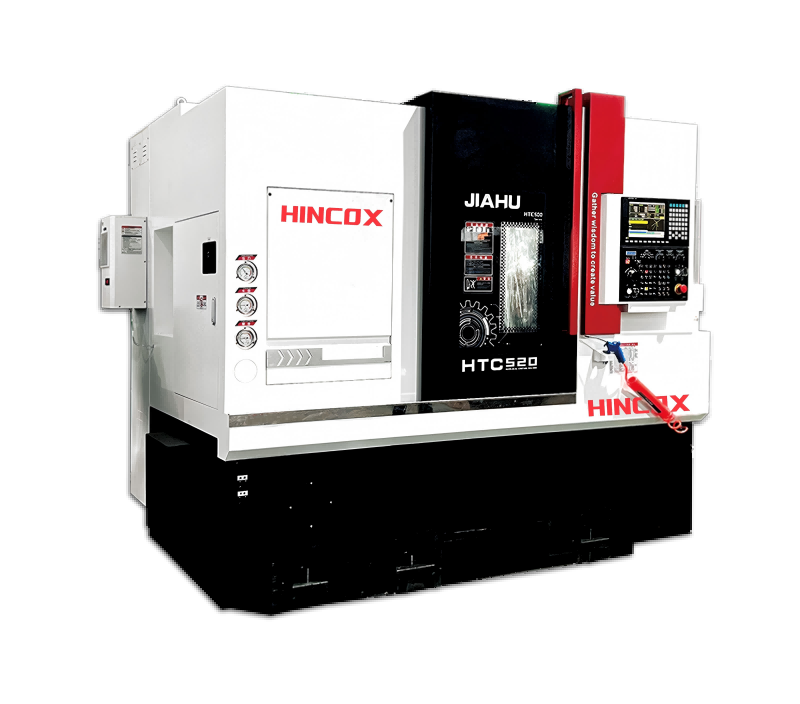

HTC520YM cnc mill turn machine|y axis&c axis
Multi task machine HTC520YM With Y Axis and C axis,Mainly targeting components with HRC<40-42,Nonferrous metals,tempered steel parts.
* Direct drive spindle/Belt spindle
* 4000/4300 rpm Spindle speed
* 8" Chuck size
*22/ 11KW Main servo motor
Characteristics:
HTC520YM adopts an advanced 30° inclined structure,monoblock casting with HT300,Z axis uses 6nos. 35mm roller blocks,so it has strong bearing capacity and good seismic resistance.The Y-axis slide and turret body are based on integrated design, reducing one joint surface. Avoiding the problem of poor rigidity and tool shocked caused by ordinary turret mounted on Y-axis slide.The tailstock is made of high-quality steel for the sleeve core shaft. After quenching and hardening, the sleeve core shaft is precision ground and processed, with high precision and good surface abrasion resistance.
Specifications:
Item | Unit | HTC520YM | |
Capacity | Max. length of workpiece | mm | 375(turning) 400(milling) |
Max. swing dia. over bed | mm | Ф630 | |
Max. dia. of workpiece(disc parts) | mm | Ф230 | |
Spindle | Hydraulic chuck | Inch | 8 |
Dia. of spindle bore | mm | Φ66 | |
Spindle nose | A2-6 | ||
Max. spindle speed | rpm | 4000/4300(Belt) | |
Main motor | kW | 22/11 | |
Structure | Slant bed degree | degree | 30° |
Guideway type | mm | LM | |
Axis | X axis travel | mm | 180 |
Z axis travel | mm | 490 | |
Y axis travel | mm | 100 (±50) | |
X/Y/Z axis rapid traverse | m/min | 24/10/24 | |
Turret | Type of turret | BMT55-12 *BMT45-15 | |
No. of tool | 12/*15 | ||
OD toolshank size | mm | 25×25 | |
Boring toolshank size | mm | Ф32 | |
Max. speed of live tooling | rpm | 5000max/15Nm-3.1kW | |
Tailstock | Type of tailstock | Hydraulic | |
Taper of tailstock quill | MT4 | ||
Travel of tailstock quill | mm | 100 | |
Travel of tailstock | mm | 400 | |
Accuracy | X axis Repeatability Positioning Accuracy | mm | ±0.003mm |
Z axis Repeatability Positioning Accuracy | mm | ±0.003mm | |
C axis Repeatability Positioning Accuracy | Second of arc | 20 | |
Others | Weight (about) | kg | 3000 |
Overall dimension (L×W×H) | mm | 2260×1650×2200 |
Optional features:
*control system*different power turret(BMT55/BMT45)*different spindle* chip conveyor(side way/rear way)
