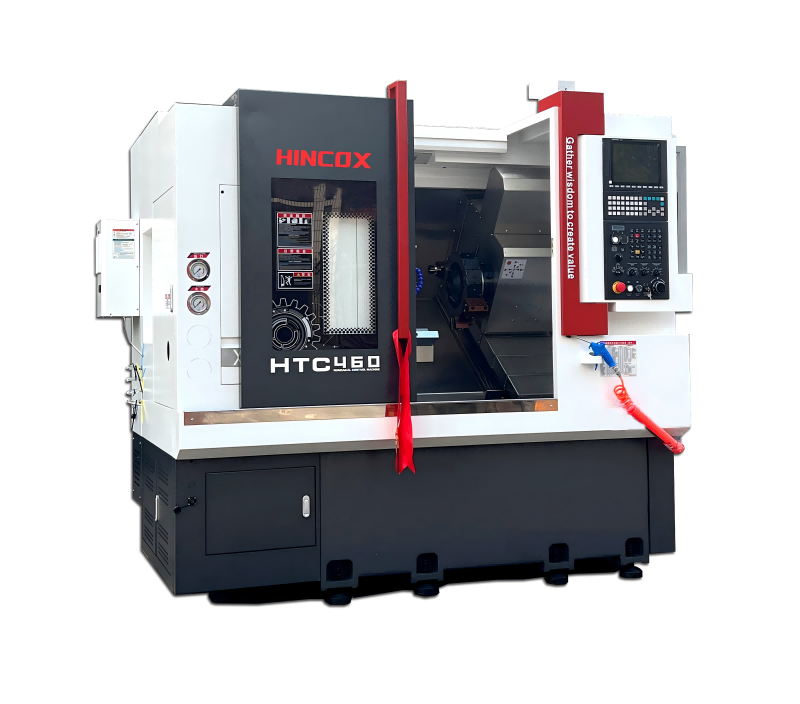

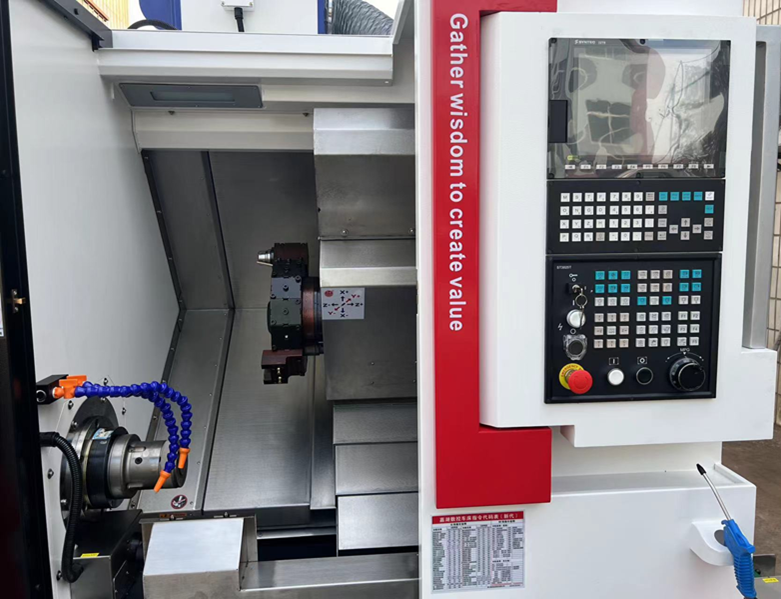

HTC460ZTYM cnc mill turn machine|live tooling

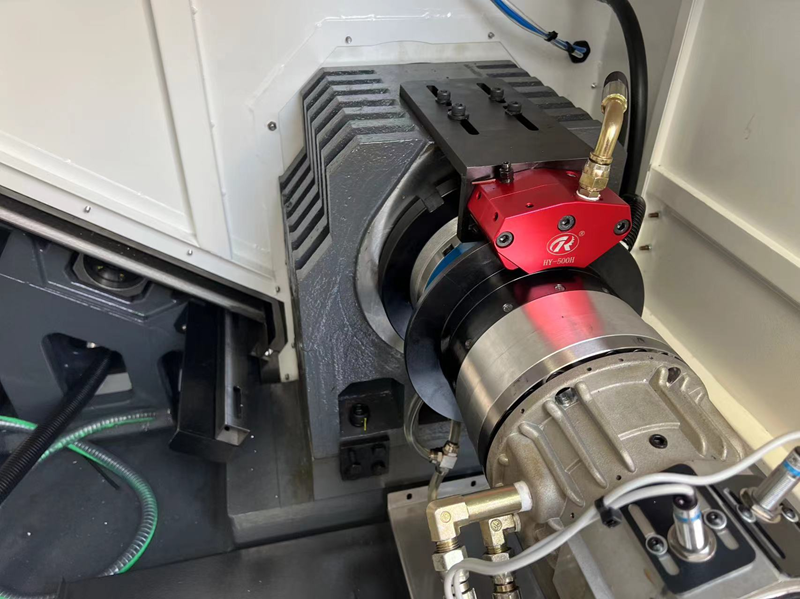

cnc mill turn machine HTC460ZTYM adopts an advanced 30° inclined structure,monoblock casting with HT300,The box shaped integral bed body cast in one piece has a large floor area, supporting feet with a large span, good stability when the bed slide moves, and low vibration.HTC460ZTYM offers a direct drive spindle,High rotation accuracy, the permanent magnet synchronous motor of the electric spindle is concentric with the spindle, and the indexing accuracy is high. The spindle is equipped with oil cooling heat dissipation, precise temperature control, and good heat dissipation. The heating of the motor has little impact on the accuracy and service life of the spindle bearings.
Dual Processes mill turn machine with Y Axis,Especially suitable for machining non-ferrous metals, copper parts
and aluminum parts,HRC<30
* High-precision Direct drive spindle
* 6000 rpm Spindle speed
* 6" Chuck size
* 10KW Main servo motor
Specifictions:
Item | Unit | HTC460ZTYM | |
Capacity | Max. length of workpiece | mm | 300 (turning/milling) |
Max. swing dia. over bed | mm | Ф520 | |
Max. dia. of workpiece(disc parts) | mm | Ф350 | |
Spindle | Hydraulic chuck | Inch | 6 |
Dia. of spindle bore | mm | Φ56 | |
Spindle nose | A2-5 | ||
Max. spindle speed | rpm | 6000 | |
Main motor | kW | 10 | |
Structure | Slant bed degree | degree | 30° |
Guideway type | mm | LM | |
Axis | X axis travel | mm | 250 (-25+225) |
Z axis travel | mm | 400 | |
Y axis travel | mm | 70 (±35) | |
X/Y/Z axis rapid traverse | m/min | 18/10/18 | |
Turret | Type of turret | BMT40 | |
No. of tool | 15 | ||
OD toolshank size | mm | 20×20 | |
Boring toolshank size | mm | Ф25 | |
Max. speed of live tooling | rpm | 5000max/11Nm-2.3kW | |
Tailstock | Type of tailstock | N/A | |
Taper of tailstock quill | N/A | ||
Travel of tailstock | N/A | ||
Accuracy | X axis Repeatability Positioning Accuracy | mm | ±0.003mm |
Z axis Repeatability Positioning Accuracy | mm | ±0.003mm | |
C axis Repeatability Positioning Accuracy | Second of arc | 10 | |
Others | Weight (about) | kg | 3000 |
Overall dimension (L×W×H) | mm | 2260×1650×2200 |
Optional features:
*control system* chip conveyor(side way/rear way)
