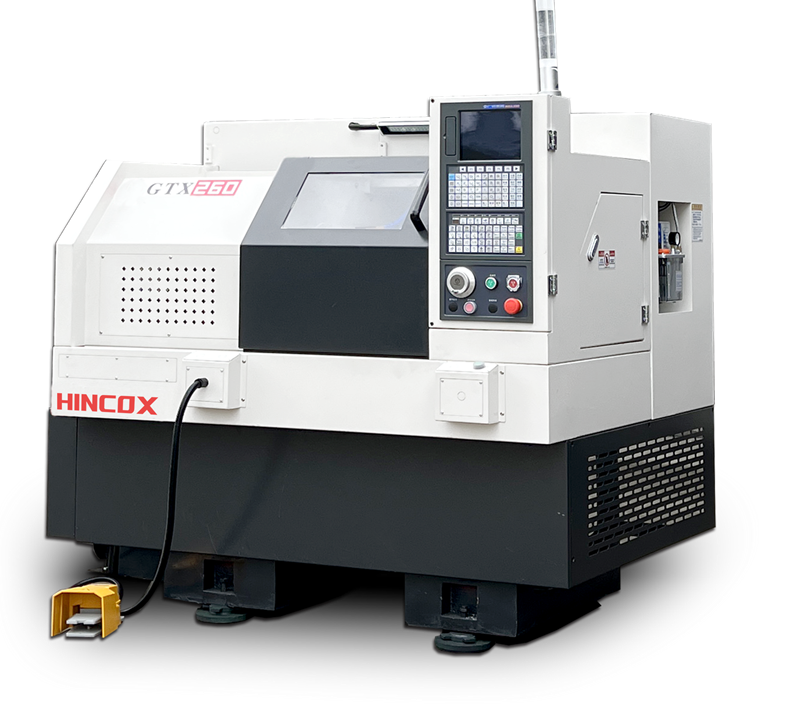

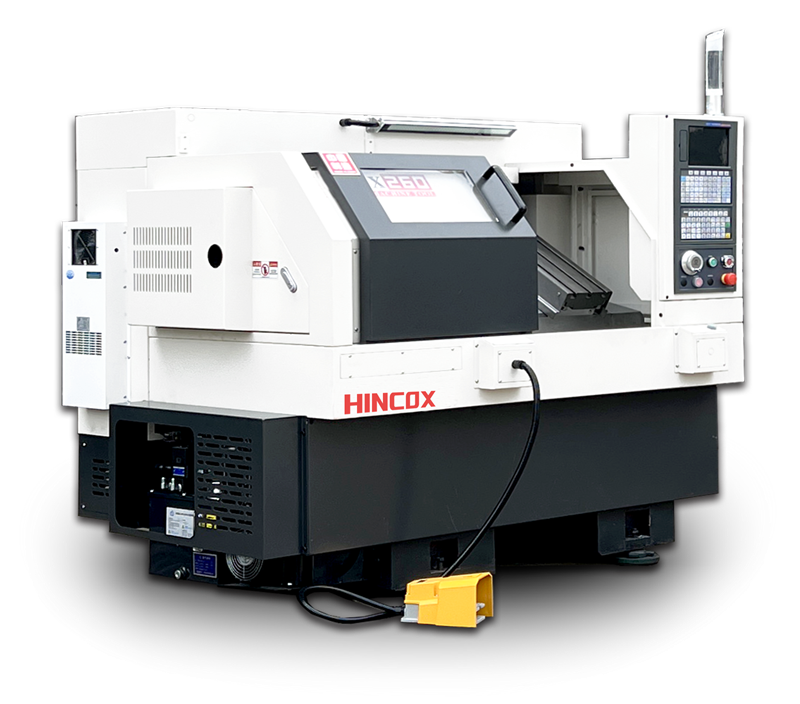

GTX260 gang tool lathe |housing machining solution
gang tool lathe GTX260 has attracted many users due to its features such as a lower price and a small footprint;
*flat bed,slant saddle
* 4500rpm Spindle speed
* 5" Hydraulic Chuck/SG26 collet
*Gang tool
Specifications:
Item | unit | GTX260 | |
capacity | Max. swing dia. over bed | mm | Φ380 |
Max. swing dia. over slide | mm | Φ76 | |
Max. workpiece length | mm | 175 | |
Max. dia. of bar | mm | Φ25 | |
X/Z axis
| Ｘ/Z travel | mm | Ｘ260；Ｚ230 |
Ｘ/Z rapid traverse | m/min | 15/15 | |
X/Z motor torque | Nm | 4/4 | |
Spindle | Collet/Hydraulic chuck | SG26/5” | |
Spindle nose | A2-4 | ||
Spindle Bore | mm | Φ36 | |
Max. Spindle speed * | rpm | 4500 | |
Spindle Power | kW | 3.7 | |
Spindle torque | Nm | Rated 24，Max.35 | |
Toolpost | Type of tool post | Gang type | |
NO. of tool | nos. | 4-6 | |
OD Tool shank size | mm | 16*16/Φ20 | |
weight | Net weight | kg | 1220Kg |
dimensions | L×W×H | mm | 1535×1285×1475 |
Optional features:
*control system* chip conveyor(Rear way)
