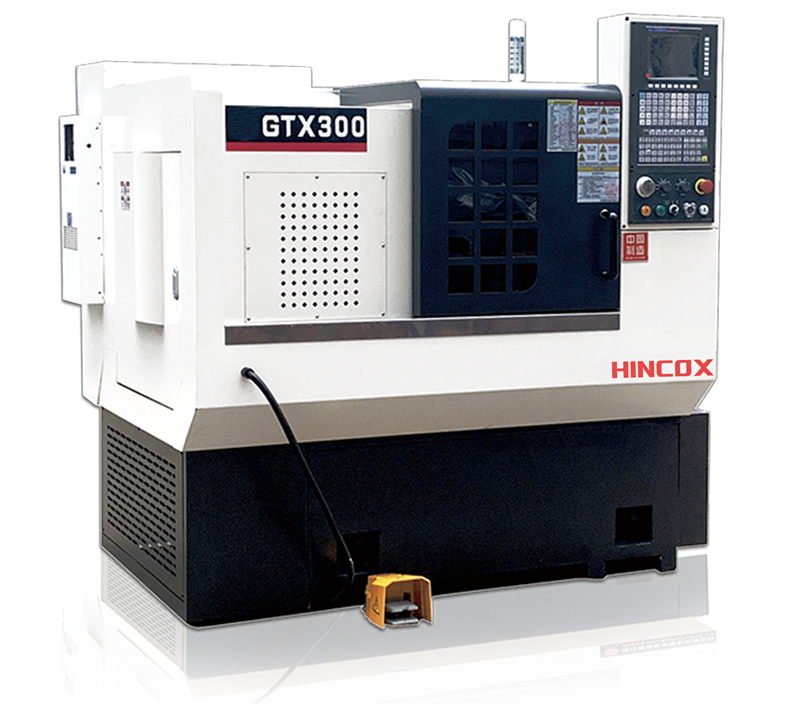

GTX series★ small lathe machine|highly recommended

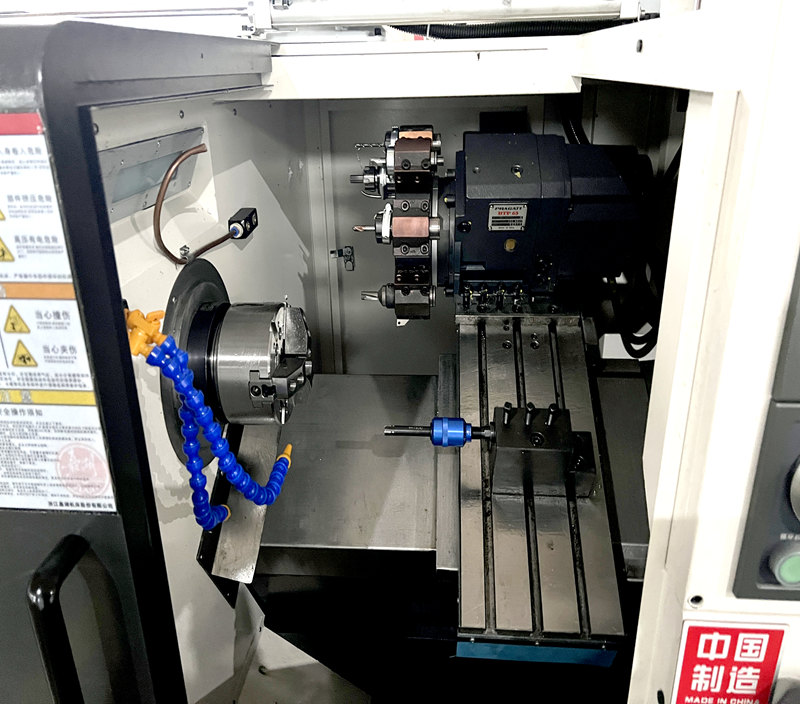

Small cnc lathe machine GTXseries feature a gang tooling or turret tooling structure with an inclined bed structure design. These features effectively save tool changing time. Ideal for high-volume production of small parts.
It can turn various internal and external surfaces of threads, arcs, cones, and rotating bodies, meeting the speed requirements for high-speed cutting of black and non-ferrous metal materials. Suitable for high-precision machining of small and medium-sized parts in industries such as plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings, etc. Good processing consistency, with processing accuracy up to IT6-7 levels.
This model can be combined with gantry robots to effectively improve production capacity and reduce labor costs.
lathe specifications:
Item | unit | GTX300(recommended) | GTX350 | |
capacity | Max. swing dia. over bed | mm | Φ380 | Φ420 |
Max. swing dia. over slide | mm | Φ165 | Φ165 | |
Max. workpiece length | mm | 220 | 415 | |
Max. dia. of bar | mm | Φ45 | Φ45 | |
X/Z axis
| Ｘ/Z travel | mm | Ｘ300；Ｚ300 | Ｘ350；Ｚ480 |
Ｘ/Z rapid traverse | m/min | 15/15 | 18/18 | |
X/Z motor torque | Nm | 6/6 | 9.6/9.6 | |
Spindle | Hydraulic chuck | 6“ | 6“/*8” | |
Spindle nose | A2-5 | A2-5/*A2-6 | ||
Spindle Bore | mm | Φ56 | Φ56/*Φ66 | |
Max. Spindle speed * | rpm | 3600 | 5000 | |
Spindle Power | kW | 5.5 | 5.5/*7.5 | |
Spindle torque | Nm | Rated 42.7,Max.58.56 | Rated 72,Max.105 | |
Toolpost | Type of tool post | Gang type | Gang type | |
NO. of tool | nos. | 4 | 5 | |
OD Tool shank size | mm | 20*20/Φ25 | 20*20/Φ25 | |
weight | Net weight | kg | 1750Kg | 2220Kg |
dimensions | L×W×H | mm | 1555×1300×1375 | 2060×1500×1730 |
Optional features:
*control system*turret* chip conveyor(Rear way)
