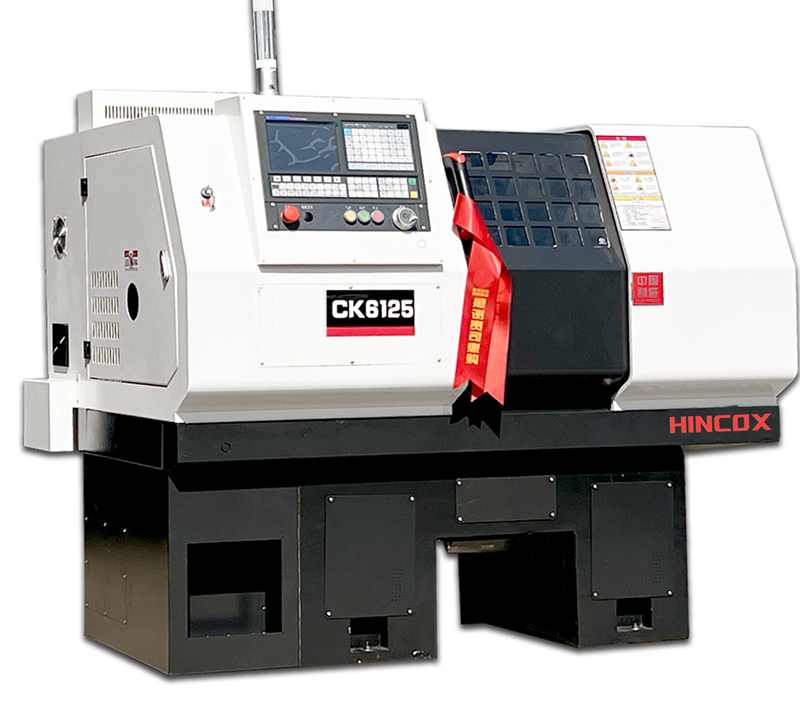

CK6125 educational cnc lathe |good quality
CK6125 is cnc trainer lathe machine,The most prominent features are affordability and durability.After so many years, it's still active in the field of metal processing.Now it can also be used as a home cnc machine.
Specifications:
items | unit | model | |
capacity | Max. swing dia. over bed | mm | Φ300 |
Max. swing dia. over slide | mm | Φ100 | |
Max .distance from x slide to spindle end face | mm | 280 | |
mm | |||
spindle | Spindle Bore | mm | Φ36 |
Max. dia. of bar | mm | Φ25 | |
Spindle nose | A2-4 | ||
Spindle speed range | r / min | 300~2600 | |
tailstock | Tailstock quill type | mm | NO |
Tailstock quill Travel | mm | NO | |
collet | Chuck size | mm | / |
Collet modle | mm | Φ43*30° | |
Turret type | type | Gang-type | |
Tool shank size | mm | □20×20/Φ25 | |
mm | |||
X/Z axis | Ｘ/Z travel | mm | Ｘ250 ；Ｚ230 |
Ｘ/Z rapid traverse | m / min | 12/15 | |
Hydraulic power unit
| 3.5MPa max，20L/min | ||
coolant | flow | L/min | 25 |
capacity | L | 40 | |
weight | Net weight | kg | 1000Kg |
dimensiongs | L×W×H | mm | 1550x1300x1450 |
