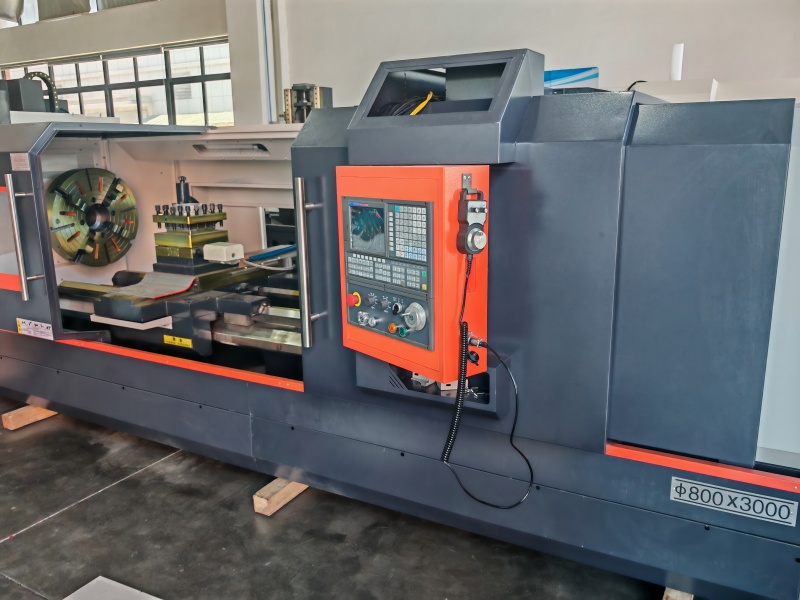

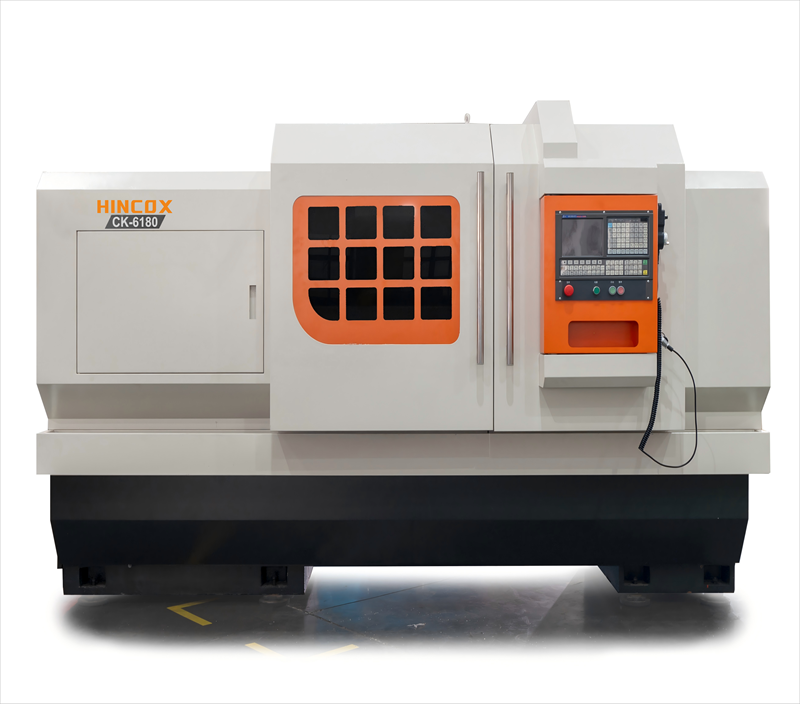

CK6180 heavy duty cnc lathe machine|high rigidity
Heavy duty cnc lathe machine CK6180 is a robust, medium to large-sized cnc lathe machine with a flat bed and hard rails.Ideal for both rough machining and semi-finishing of shaft and disc components that have Dia. 200-500 mm,workpiece length from 1m to 3m,It can also be featured with a lathe steady rest.
lathe specifications:
CK6180×1000（1500mm/3000mm）
items | contents | unit | CK6180 |
capacity | Max. swing dia. over bed | mm | Φ800 |
Max. swing dia. over slide | mm | Φ410 | |
Max .dia. of workpiece | mm | Φ800/Φ400 | |
Max.lenth of workpiece | mm | 920/1420 | |
spindle | Spindle Bore | mm | Φ102 |
Max. dia. of bar | mm | Φ90 | |
Spindle nose | C11 | ||
Spindle speed range | r / min | 1100 | |
tailstock | Tailstock quill type | mm | MT6 |
Tailstock quill Travel | mm | Φ100/240 | |
chuck | Chuck size | mm | 250mm |
Tool post | type | 4-station toolpost, *8-station turret | |
No. Of tool stations | 4-8 | ||
X/Z axis | Ｘ/Z travel | mm | Ｘ420 ；Ｚ1000/1500 |
Ｘ/Z rapid traverse | m / min | 4/6(GSK) | |
Power capacity | KVA | 30 | |
Net weight | kg | 4500/5200Kg | |
L×W×H | mm | 3410x 2150 x 2100 （ 3965 x 2150 x 2100 ） |
Optional features
*different controller system*different chucks;Customized Solutions
