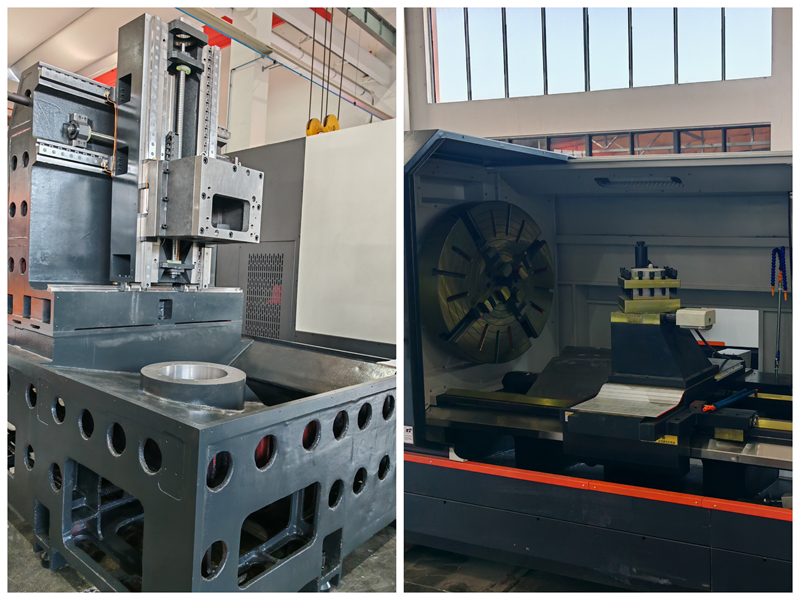

CNC Horizontal Lathe VS Vertical turret Lathe: A Comprehensive Comparison
In modern manufacturing, CNC lathes are indispensable for precision machining. Among them, CNC horizontal lathes and CNC vertical lathes dominate different niches due to their structural designs and functional capabilities.The following text takes HINCOX’s CNC vertical turret lathe as an example. This article explores their key differences, applications, and suitability for specific tasks.
1. Structural Design
CNC Horizontal Lathe
- Spindle Orientation: Horizontal spindle aligned parallel to the ground.
- Workpiece Mounting: Chuck or collet holds the workpiece horizontally.
- Bed Design: Long, flat bed supports the carriage and tailstock.
- Space Efficiency: Requires more floor space due to horizontal layout.
Vertical turret Lathe
- Spindle Orientation: Vertical spindle perpendicular to the ground.
- Workpiece Mounting: Rotary table clamps the workpiece vertically.
- Bed Design: Compact design with a lower center of gravity.
- Space Efficiency: Occupies less floor space, ideal for crowded workshops.
---
2. Workpiece Compatibility
Criteria | CNC Horizontal Lathe | Vertical turret Lathe |
Workpiece Length | Ideal for long shafts, rods, or tubes | Limited by vertical height; better for shorter workpieces |
Workpiece Diameter | Handles moderate diameters (≤500 mm) | Excels with large diameters (≥500 mm) |
Weight Capacity | Typically ≤1 ton | Supports heavy workpieces |
---
3. Key Applications
CNC Horizontal Lathe
- Industries: Automotive, aerospace, general machinery.
- Typical Tasks:
- Precision turning of cylindrical parts (e.g., engine shafts, screws).
- Thread cutting and taper machining.
- High-speed production of small to medium-sized components.
Vertical turret Lathe
- Industries: Energy (turbine discs), heavy machinery, marine engineering.
- Typical Tasks:
- Machining large, heavy discs or rings (e.g., gears, flanges).
- Face milling and drilling on wide surfaces.
- Single-setup processing for asymmetric parts.
---
4. Advantages and Limitations
CNC Horizontal Lathe :
- Pros:
- Higher spindle speeds (up to 6,000 RPM) for fine finishes.
- Easier chip evacuation due to gravity.
- Lower initial cost for standard configurations.
- Cons:
- Limited workpiece size and weight.
- Complex setup for irregularly shaped parts.
Vertical turret Lathe :
- Pros:
- Superior stability for heavy-duty cutting.
- Simplified loading/unloading of large workpieces.
- Reduced vibration for improved accuracy.
- Cons:
- Higher energy consumption and maintenance costs.
- Slower spindle speeds (typically ≤1,500 RPM).
Conclusion: Choosing the Right Machine
- Opt for a CNC Horizontal Lathe if:
- Your focus is on high-speed, precision machining of small to medium cylindrical parts.
- Floor space and budget are constrained.
- Opt for a CNC Vertical Lathe if**:
- You handle oversized, heavy workpieces (e.g., wind turbine hubs).
- Stability and rigidity are critical for deep cutting operations.
Ultimately, the choice depends on workpiece specifications, production volume, and long-term operational goals. Many manufacturers combine both types to maximize flexibility across diverse projects.
