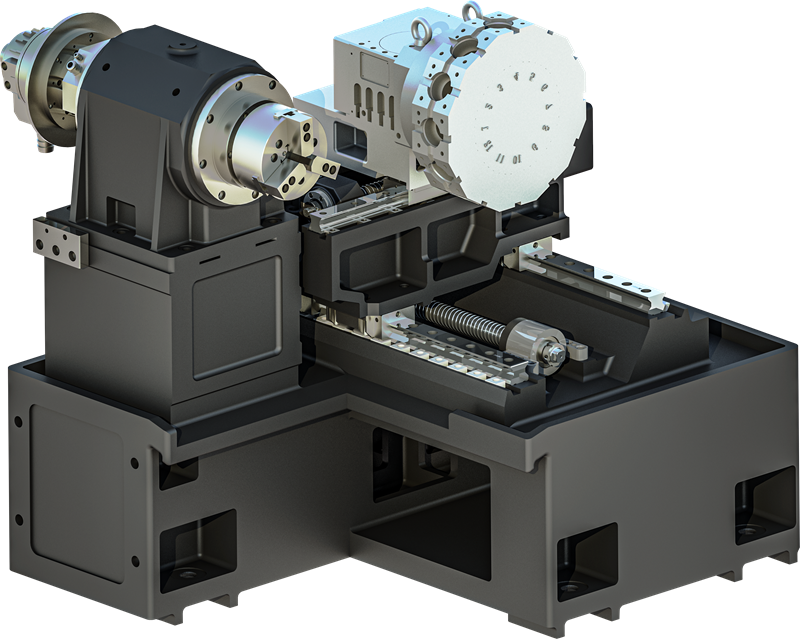

TP35/TP45 Mini lathe center | Japanese design
TP35/45 boasts a highly compact design, taking up just half the space of similar models. It’s an ideal choice for startups or anyone working with limited space，and It is ideal for handling disc-shaped and short-axle components.
Originally designed for Japanese users, this cnc machine has steadily gained popularity among a broader audience.
Specifications:
Item | unit | TP35 | TP45 | TP45Y |
Travels | ||||
X-axis travel | mm | 175 | 175 | 150 |
Y-axis travel | mm | N/A | N/A | 100 (±50） |
Z-axis travel | mm | 290 | 290 | 290 |
ACCURACY | ||||
Positioning | mm | 0.008 | 0.008 | 0.008 |
Repeatability | mm | 0.004 | 0.004 | 0.004 |
C axis positioning accuracy | ” | ±20 | ±20 | ±20 |
C axis Repeatability accuracy | ” | ±5 | ±5 | ±5 |
SPINDLE | ||||
Spindle nose | A2-5 | A2-6 | A2-6 | |
Spindle bore | mm | Ø56/ Ø45 | Ø66/ Ø50 | Ø66/ Ø50 |
Max. Spindle speed | rpm | 6000 | 4500 | 4500 |
Spindle Power (cont./30min) | kw | 11/15 | 15/18.5 | 15/18.5 |
Max. Spindle Torque | Nm | 105 | 210 | 210 |
Processing capacity | ||||
Max. Swing Diameter | mm | Ø360 | Ø360 | Ø360 |
Max. turning Diameter | mm | Ø250 | Ø250 | Ø250 |
Max. Length of workpiece | mm | 250 | 250 | 250 |
X Axis Fast-Moving | m/min | 30 | 30 | 30 |
Y Axis Fast-Moving | m/min | N/A | N/A | 15 |
Z Axis Fast-Moving | m/min | 30 | 30 | 30 |

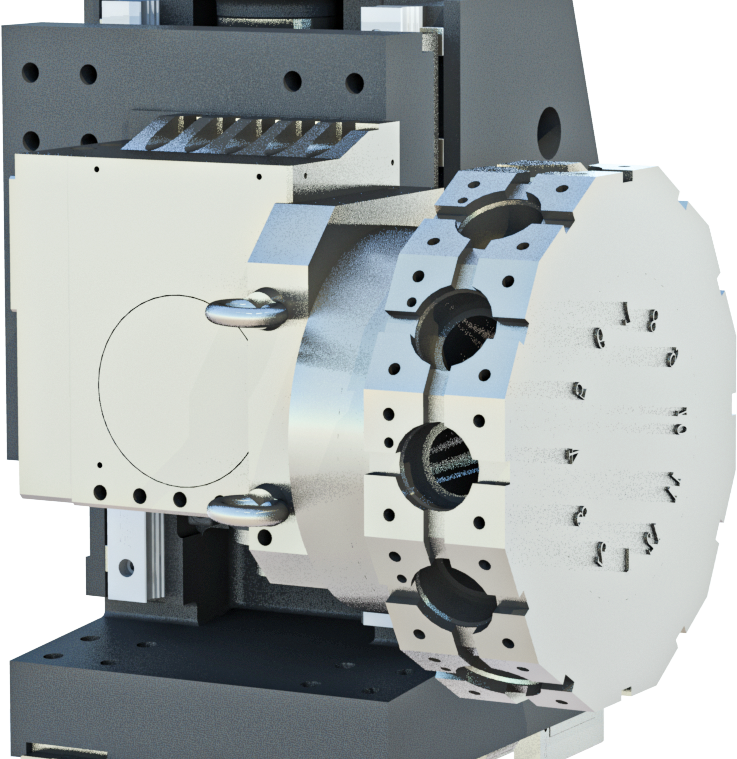

Turret | BMT55 | BMT55 | BMT55 | |
Nos. Of tools | pcs | 12 | 12 | 12 |
Tool shank size | mm | □25/Ø40 | □25/Ø40 | □25/Ø40 |
Tool change time | s | 0.45/0.65 | 0.45/0.65 | 0.45/0.65 |
Others | ||||
Machine Weight | kg | 2500 | 2600 | 2900 |
Dimensions L*W*H | mm | 1500*2750*1900 | 1500*2750*1900 | 1500*2750*2000 |
